E4

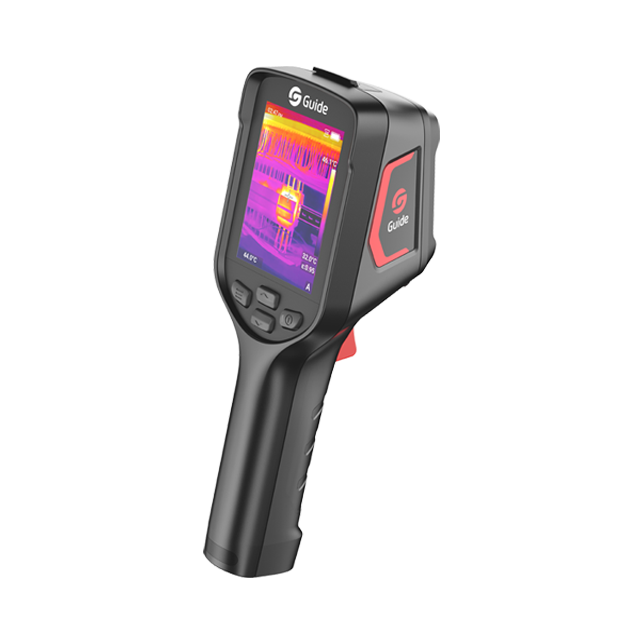

Tool-like Thermal camera
EasIR Series offers high-resolution detectors (256×192 or 384×288) for precise capture of minute temperature variations. Featuring IR-Perfclear technology, it optimizes image details and reduces noise in real time, delivering exceptionally clear thermal imaging. The device is equipped with a 3.5-inch bright HD display and a 2 MP visible-light camera, supporting both synchronous display or image fusion of thermal and visible-light. Enhanced with smart capabilities including live video streaming, recording, Wi-Fi connectivity, and OTA upgrades, it significantly boosts work efficiency.
384×288@12μmIR Resolution
25mKNETD
-20°C~650°CMeasurement range
30Hz/9HzFrame rate
ADD TO COMPARE

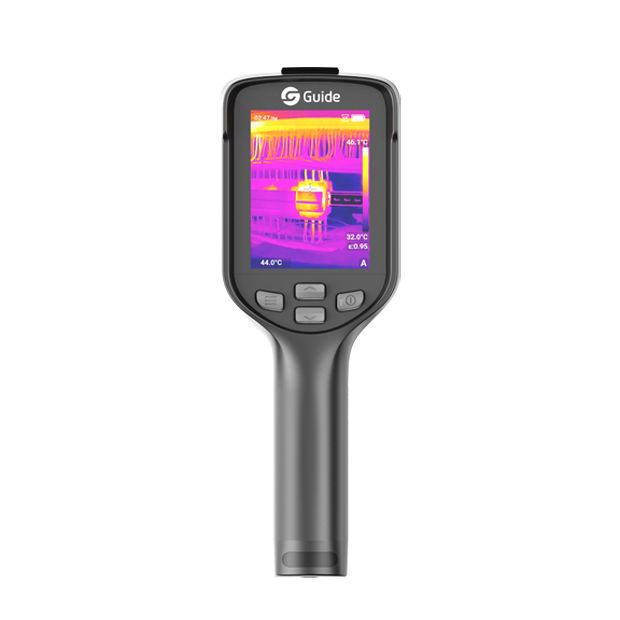

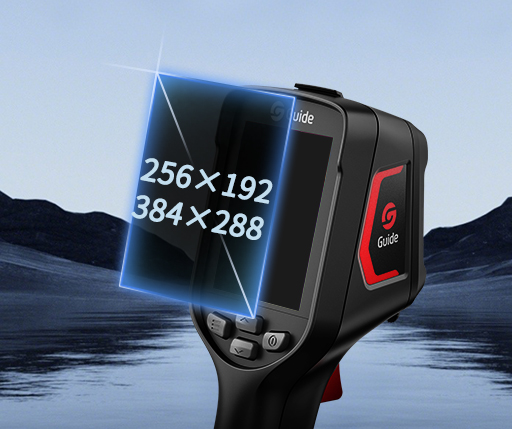

3.5-inch large screen
The expansive 3.5-inch display provides a clear view of details, enabling precise control of critical information.

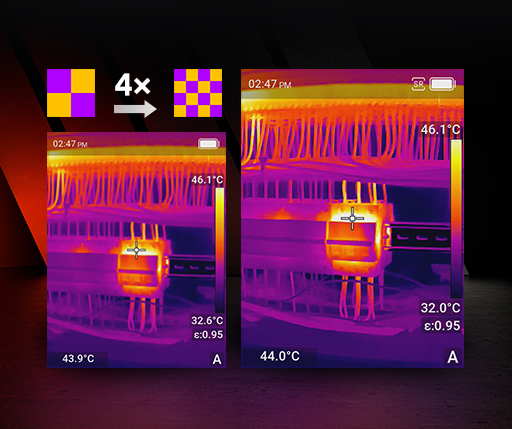

Real-time IR-Perfclear technology
Features IR-Perfclear real-time super resolution technology for 4x image quality enhancement.

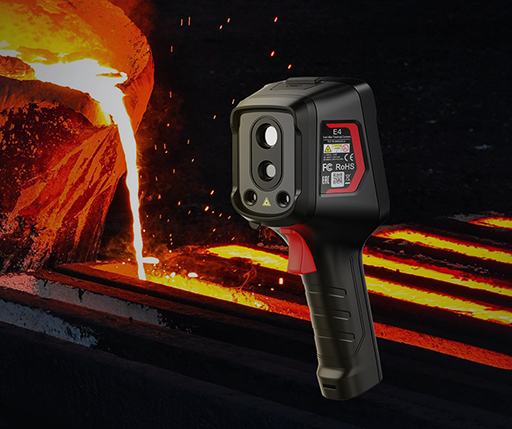

Up to 650℃ Measurement Range
Measurement range covers -20℃ to 650℃, enabling stable analysis in challenging environments.
.jpg)

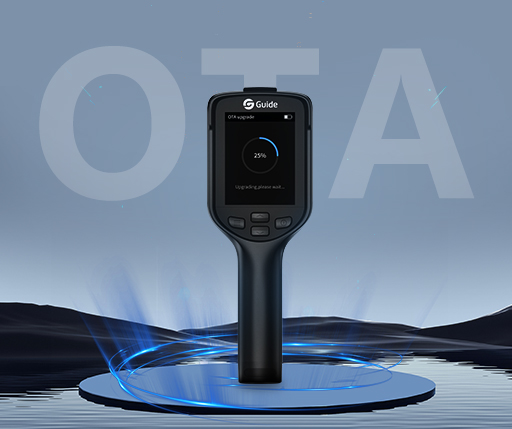

OTA Updates
Featuring encrypted transmission and verification for secure and stable upgrades. Update with a single click, anytime, anywhere.

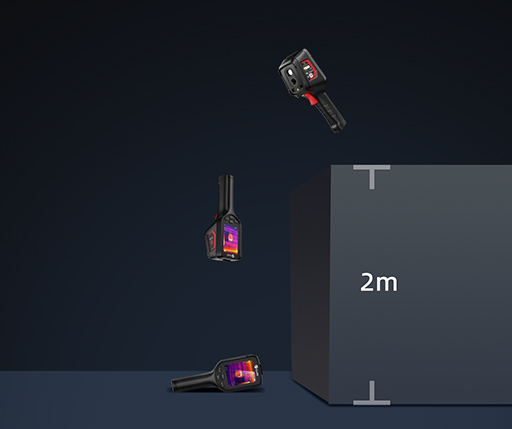

2-Meter Drop Proof
Certified for 2-meter drop resistance. Unfazed by rain, high temperatures, or harsh conditions.

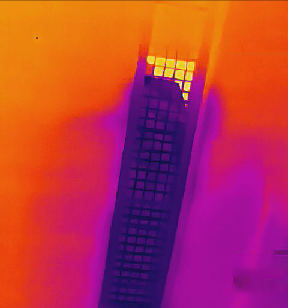

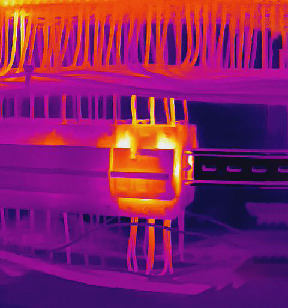

Applications
Media Gallery
Technical Parameters
Model
E4
ADD TO COMPARE
| Imaging and optics | |
|---|---|
| Detector type | VOx, 7.5 to 14μm |
| Infrared resolution | 384×288@12μm |
| Super resolution | Yes, Upgrade to 768×576 |
| NETD | 25mK |
| Frame rate | 30Hz/9Hz |
| Focal length | 7mm |
| Field of view | 37°×28° |
| IFOV | 1.71mrad |
| Min. object distance | 0.3m |
| D:S | 588:1 |
| Focusing mode | Focus-free |
| Measurement and analysis | |
|---|---|
| Measurement range | Support auto-switching: -20°C to 150°C, 0°C to 650°C |
| Measurement accuracy | ±2°C or ±2%, whichever is greater |
| Analyzed target | Center spot; Three Fixed Areas: Small, Medium, Large (Alternative) |
| Alarm | Full screen temperature threshold alarm (image and flash) |
* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
